i4500 Load Moment Indicator LMI

For telescopic boom cranes

i4500 Load Moment Indicator LMI

For telescopic boom cranes

The most versatile Crane Capacity Indicator for all your needs!

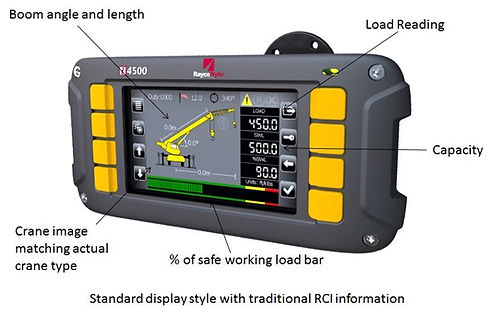

Crane overloading accidents are common yet easily avoidable. All you really need is a reliable crane LMI system on your crane. The i4500 comes with three display options in 4.3 inch, 7 inch & 10 inch. The full color LCD screen is easily readable in direct sunlight. It also has a dimmable backlight feature for low light and night time use.  The i4500 lets you save and upload data with a USB connection and flash drive.  The display provides clear and loud visual and audible alarms in case of overload or ATB.

The i4500 can even be retrofitted and integrated on the Linkbelt HTC 8665 cranes. Purchase the i4500 load moment indicator today and put the best crane indicator on your crane!

  • Display sizes of either 4.3 inches, 7 inches or 10.4 inches (4.3-inch display dimensions: 3,66"x7,80"x1,65" / 93x198x42 mm)

  • High resolution LCD screen readable in direct sunlight and with dimmable backlit at night, with accurate color images

  • Large integral memory 2GB (upgradable on request) and processor speed (600/800 MHz)

  • Flexibility to add inputs and outputs on the CANbus network

  • Intelligent computing for self-diagnostic detection of system malfunction

  • Uploading of new information via a USB Stick-No special tools or laptop required with all calibration done from the display screen

  • Display rating up to IP67 and suitable for an indoor or outdoor environment and a temperature range of

  • -20° C to 70°C (-4'F to 158'F). Optional extended temperature of-40° C to 85° C (-40'F to 185'F)

  • Supply voltage 11 to 36 vdc

  • Audible and visual alarms

  • Output connection for lock-out circuit for overload and ATB

  • Self - diagnostic mode with fault log

  • CPU and Display in one unit
